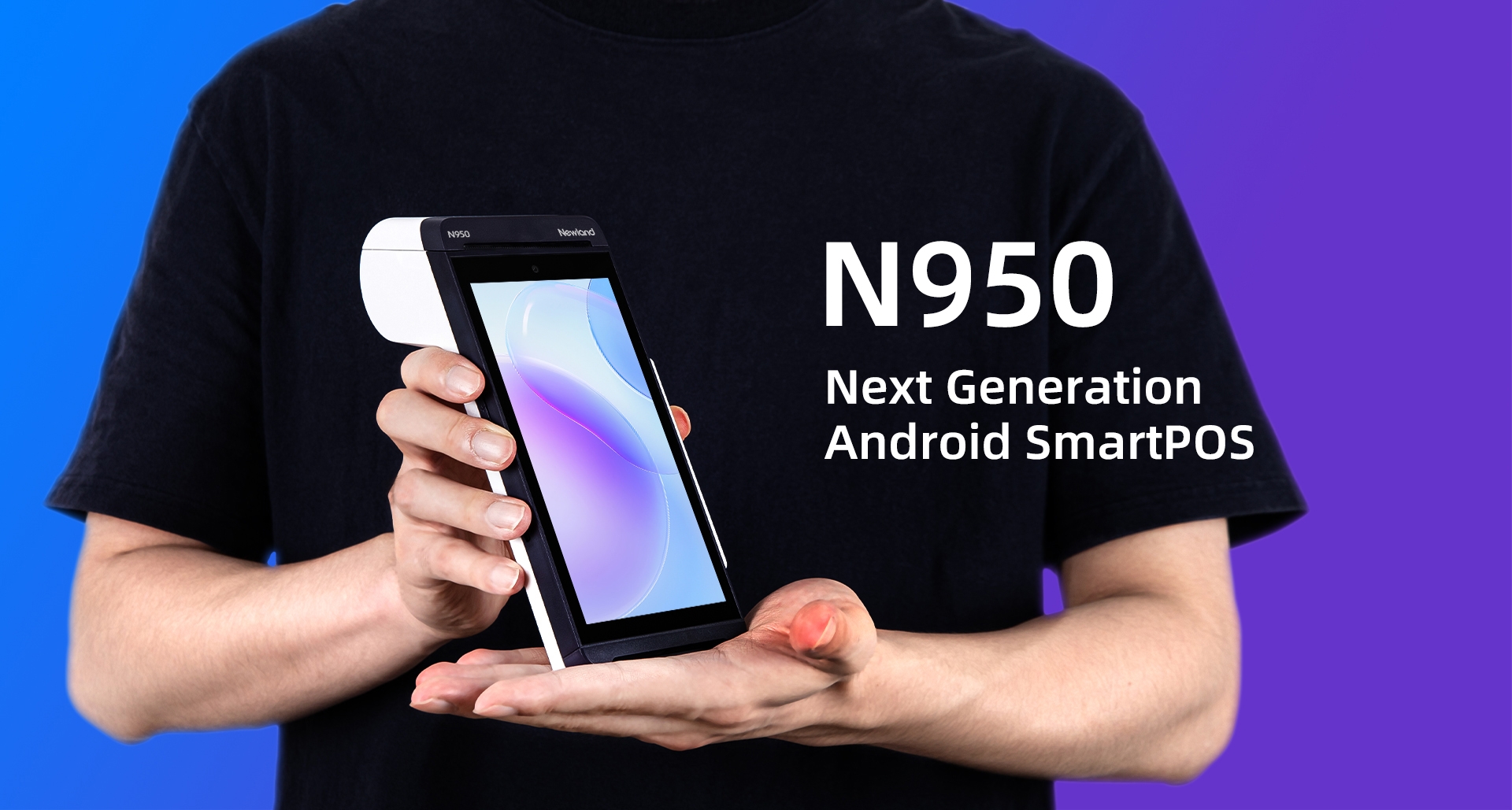

N950 - SmartPOS - Newland NPT

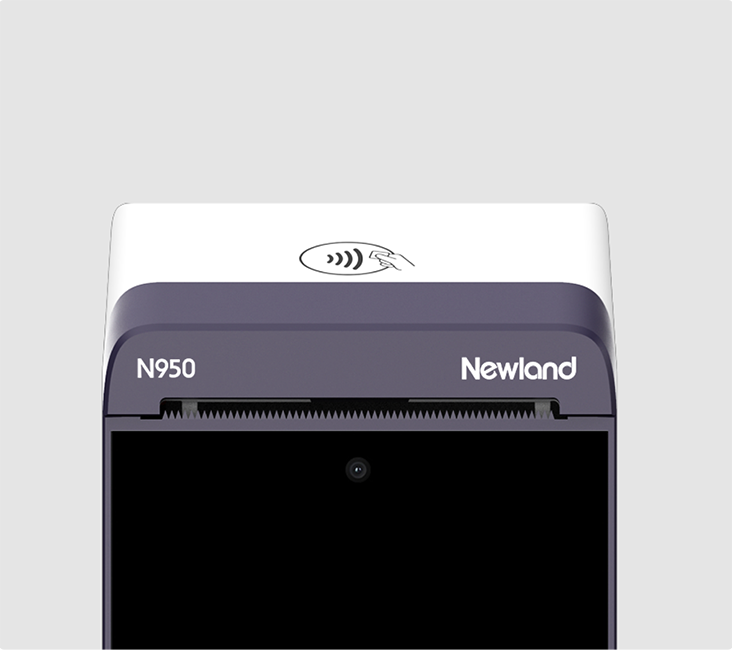

Cutting-edge aesthetics

With ground-breaking design and user-friendly ergonomics, N950 sets a new benchmark for Android SmartPOS terminals.

Reduced complexity
Shows precision
Explicit function
Effortless
Dedicated



Superb resolution

HD touch screen transforms user interaction, taking customer engagement to a whole new level.

WIDER
5.99"
5.99" screen for the ultimate visual experience
HIGHER
1440×720
resolution of 1440×720 provides optimal viewing in any environment.

High-performance design specifications

Independent security processor
ARMv7-M security core, 192MHz
Extensive memory footprint
2/3/4 GB RAM and 16/32/64GB Flash,
MicroSD card up to 256GB
Powerful platform
Running Android 12
High-speed processor
Cortex Quad-core A53, 2.0GHz

Pay anytime, anywhere

Fast and secure data transmission
in any location
using Bluetooth 2.1/5.0, WiFi or 4G

BT 2.1/5.0
WIFI
4G

Capturing the details

Front camera
0.3 MP as standard and optional 2 MP
for faster speed and efficiency.

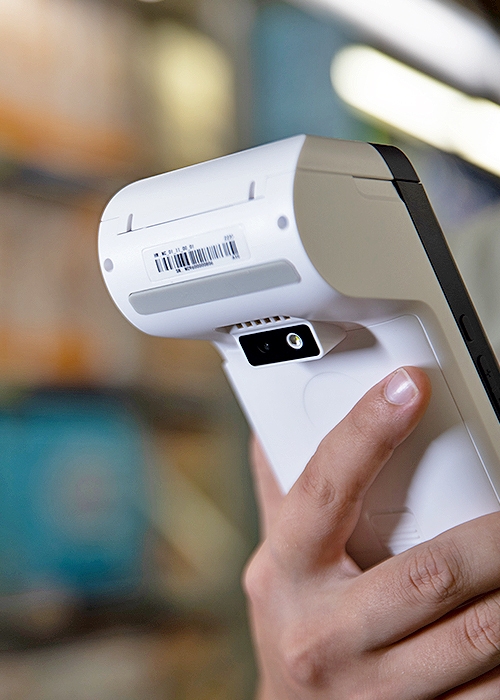

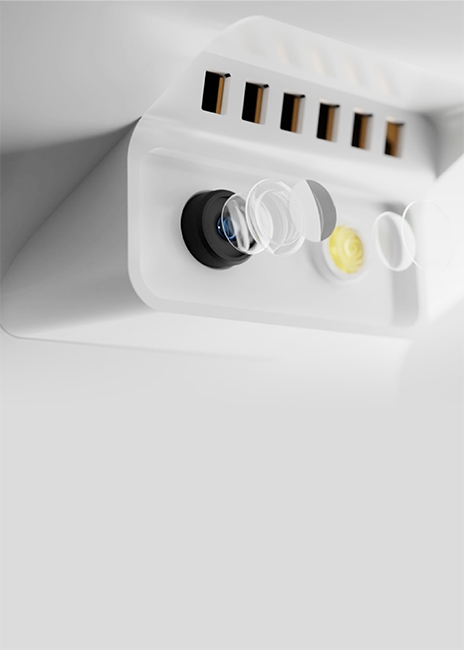

Rear HD camera to capture more
Standard 5 MP, optional 8 MP,

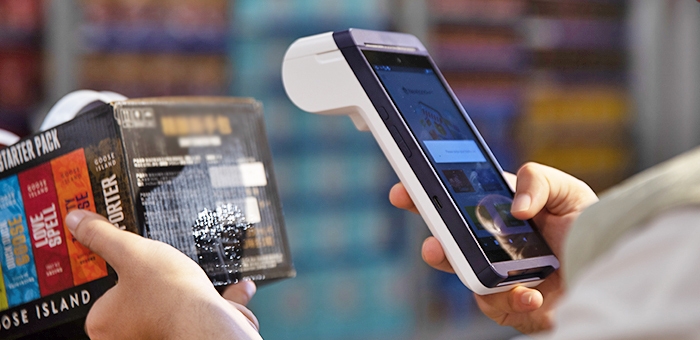

for quick 1D or 2D barcode scanning.

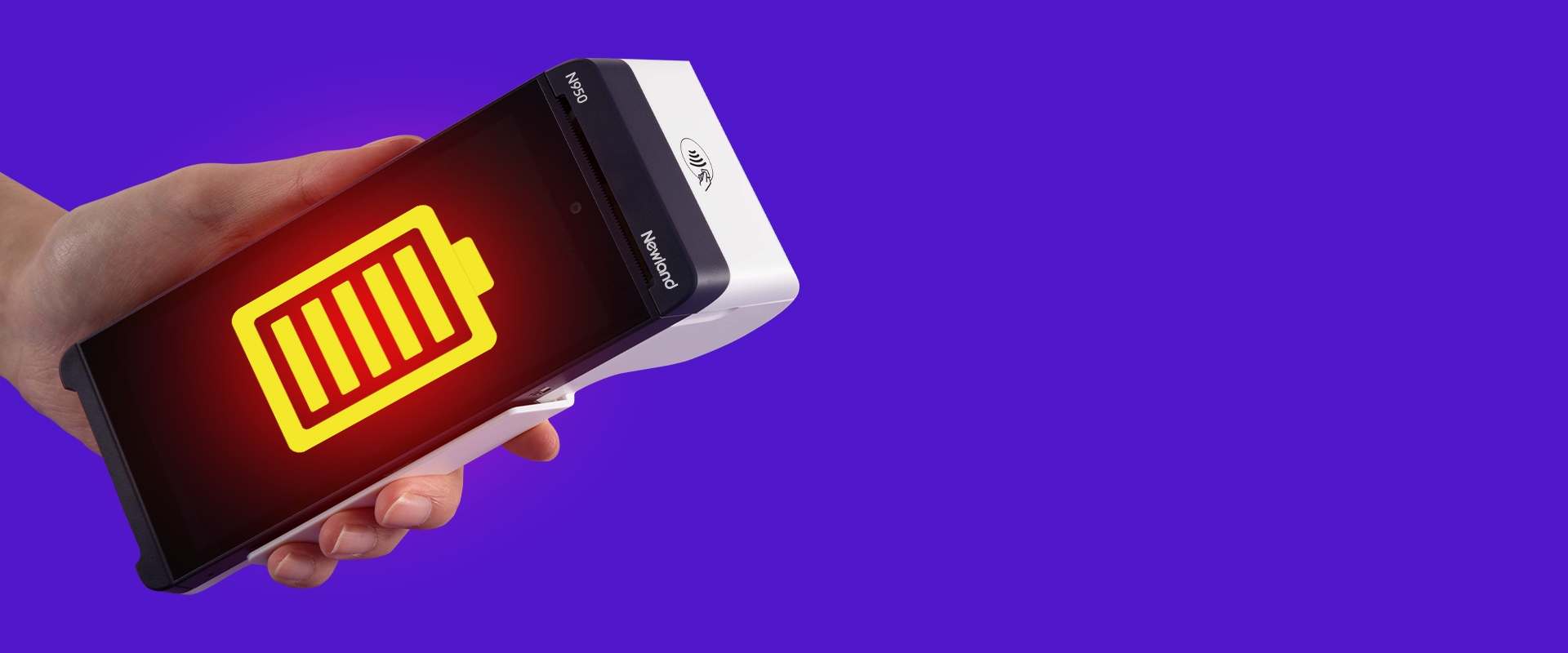

Enduring beyond limits

Standard 3.6V/5200mAh
Optional up to 3.6V/6600 mAh
for continuous 24/7 usage.

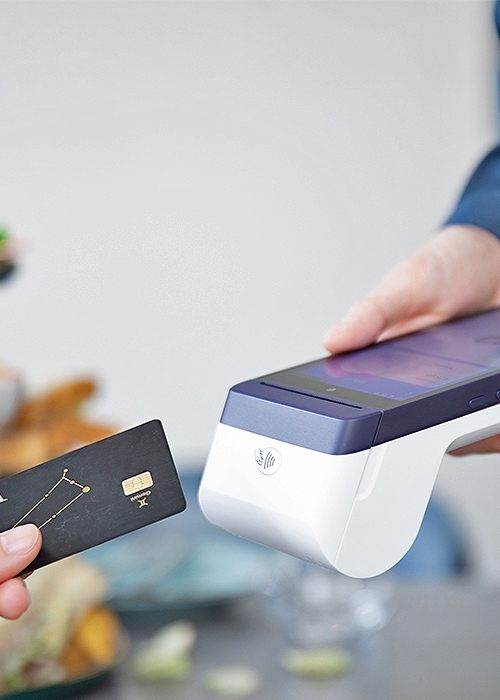

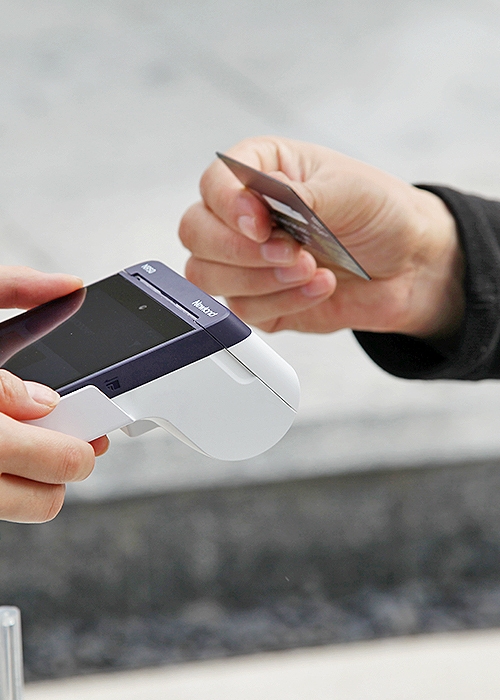

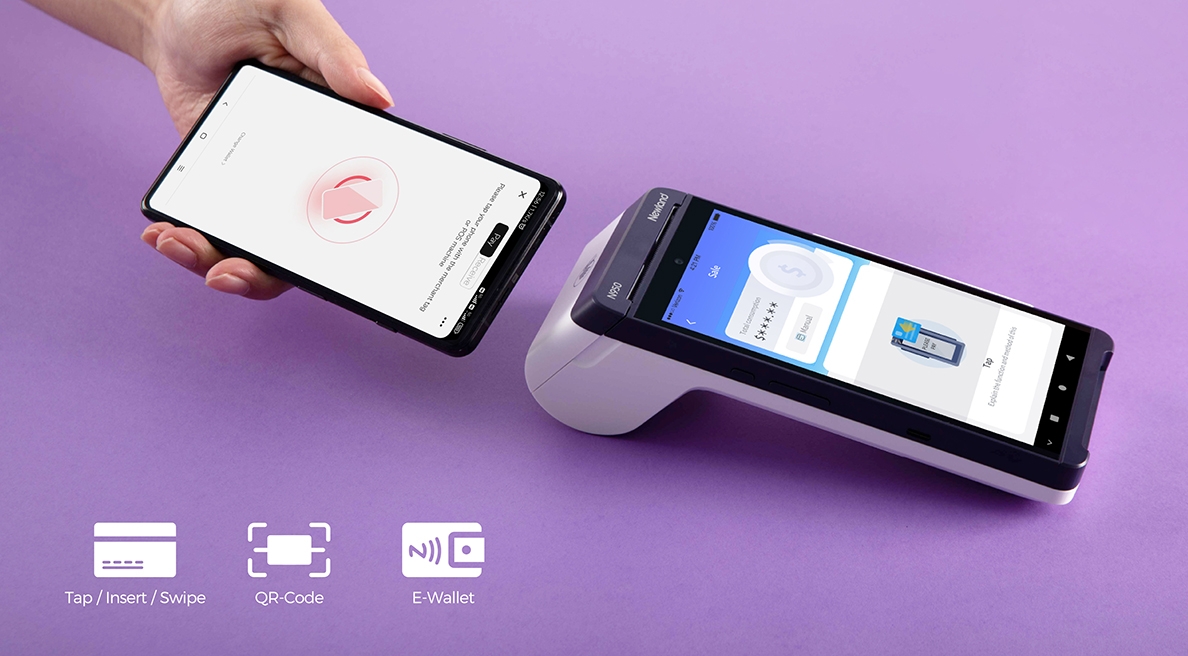

Accepting all payment methods

From chip and PIN, contactless cards, NFC or QR-code based wallets,
N950 can handle all ways to pay post-pandemic.

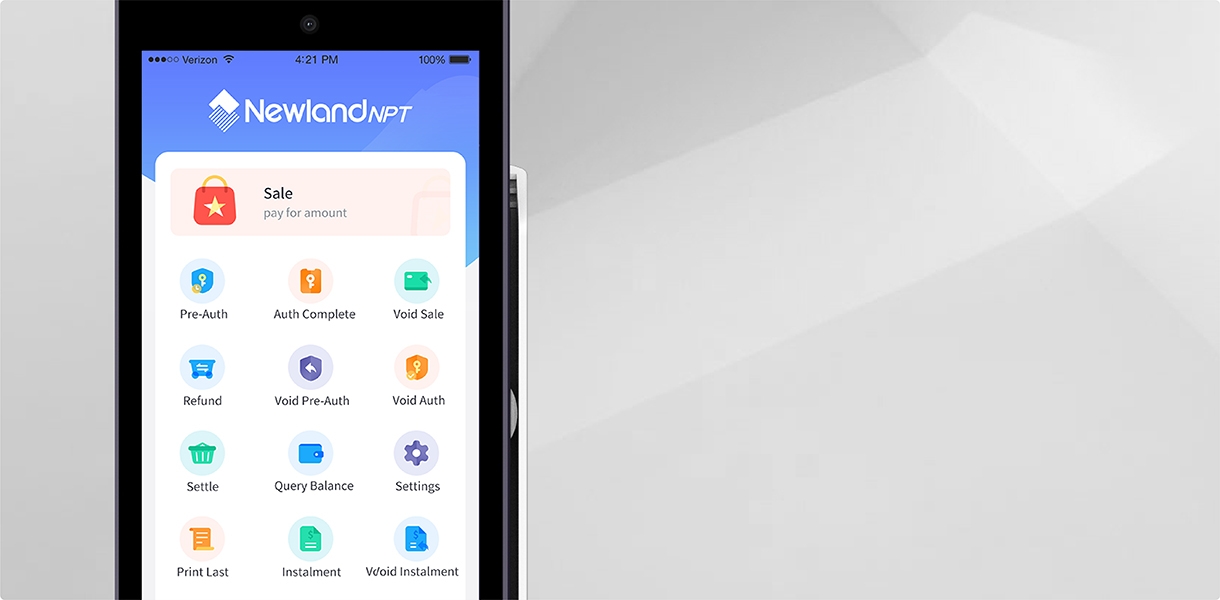

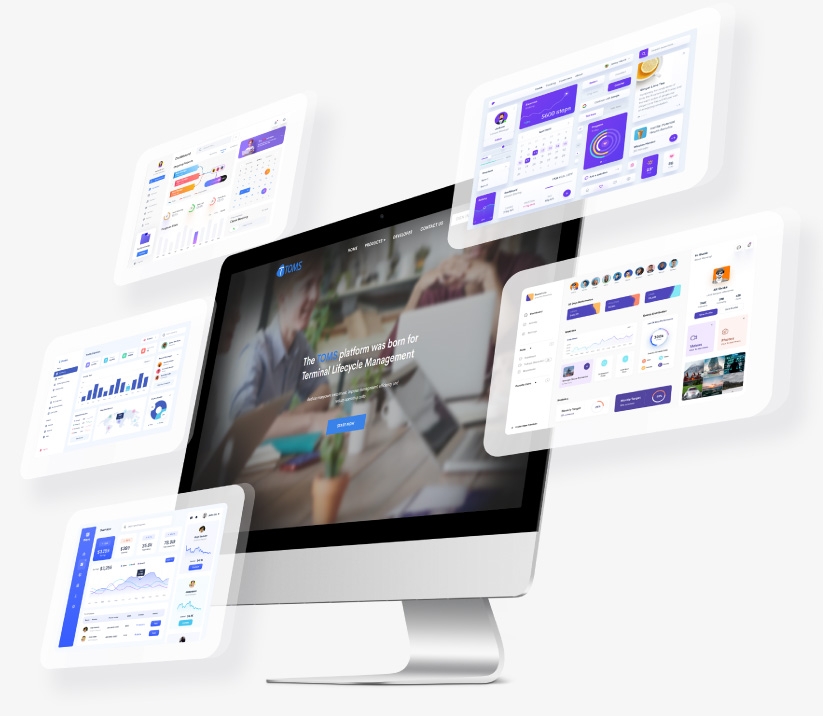

Adding value to your business

Connected to our TOMS app store, allowing
merchants to benefit from the latest business
apps and value-added services.





Typical use cases

General retail

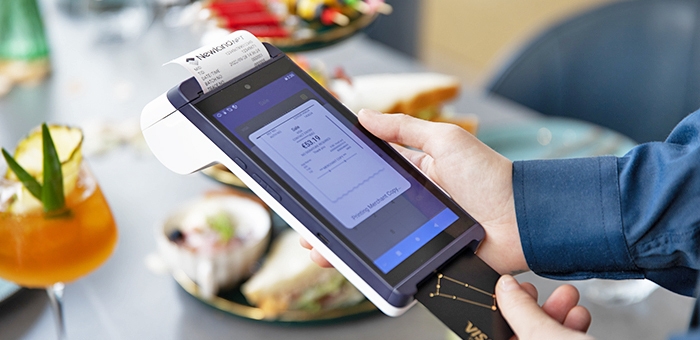

Restaurants
Hotels

Technical Specifications

OS
Android 12
Application Processor
Cortex Quad-core A53, 2.0GHz
Crypto Processor
ARMv7-M security core, 192MHz
Memory
2GB RAM, 16GB FLASH
3GB RAM, 32GB FLASH (Optional)
4GB RAM, 64GB FLASH (Optional)
MicroSD card (Optional, up to 256GB)
Display
5.99-inch TFT full color LCD display, resolution of 1440 x 720, with adjustable backlight
Capacitive multi-touch screen, support electronic signature
Wireless Communication
4G / 3G / 2G,
WIFI (802.11 a/b/g/n/ac)2.4G&5G,
Bluetooth 2.1/5.0
Positioning
GPS, GLONASS, BEIDOU
Card Reader
Magnetic Card Reader,
Smart Card Reader,
Contactless Card Reader
Camera
0.3MP/ 2MP(Optional) front camera, support 1D/2D code payment.
5MP/ 8MP(Optional)
autofocus rear camera with flashlight, support 1D/2D code payment
Audio
1 x Speaker, 1 x Microphone, support audio recording and media play
Keypad
Secure virtual keypad for PIN entry, 1 x power button, 1 x VOL+, 1 x VOL-
Printer
High-speed thermal printer, 80mm/s.
Paper roll diameter: 40mm
Paper width: 58mm
Peripheral Ports
1 x Type C port
Card Slots
2 x SIM, 2 x SAM
Docking Station
Charging base(Optional)
Extension HUB (Optional)
1 x RS232, 2 x USB-A, 1 x Type-C, 1 x Ethernet (RJ45)
Power Supply
Input: 100-240V AC 50/60Hz
Output: 5.0V DC, 2.0A
Battery
Li-ion battery, 7.2V/2600mAh/18.7Wh (Equal to 3.6V/5200mAh)
(Optional) Li-ion battery, 7.2V/3300mAh/23.7Wh (Equal to 3.6V/6600mAh)
Dimensions
201mm (L) * 79.8mm (W) * 62mm (H)
Weight
464g including battery
Environment
Operating temperature: -10℃～50℃ (14℉~122℉)
(Charging below 0° is not recommended as it will affect battery performance)
Storage temperature: -20°C～60°C (-4°F~140°F)
Relative humidity: 5%～93% (Non-condensing)
Certifications
PCI PTS 6.x, EMV L1/L2, EMV Contactless L1, PayPass, payWave, American ExpressPay, Discover D-PAS, UnionPay QuickPass, JCB, TQM, CE, RoHS, MCCS, CB, Interac, ATEX, NSICCS, FCC, ABECS, Bancomat, Anatel
